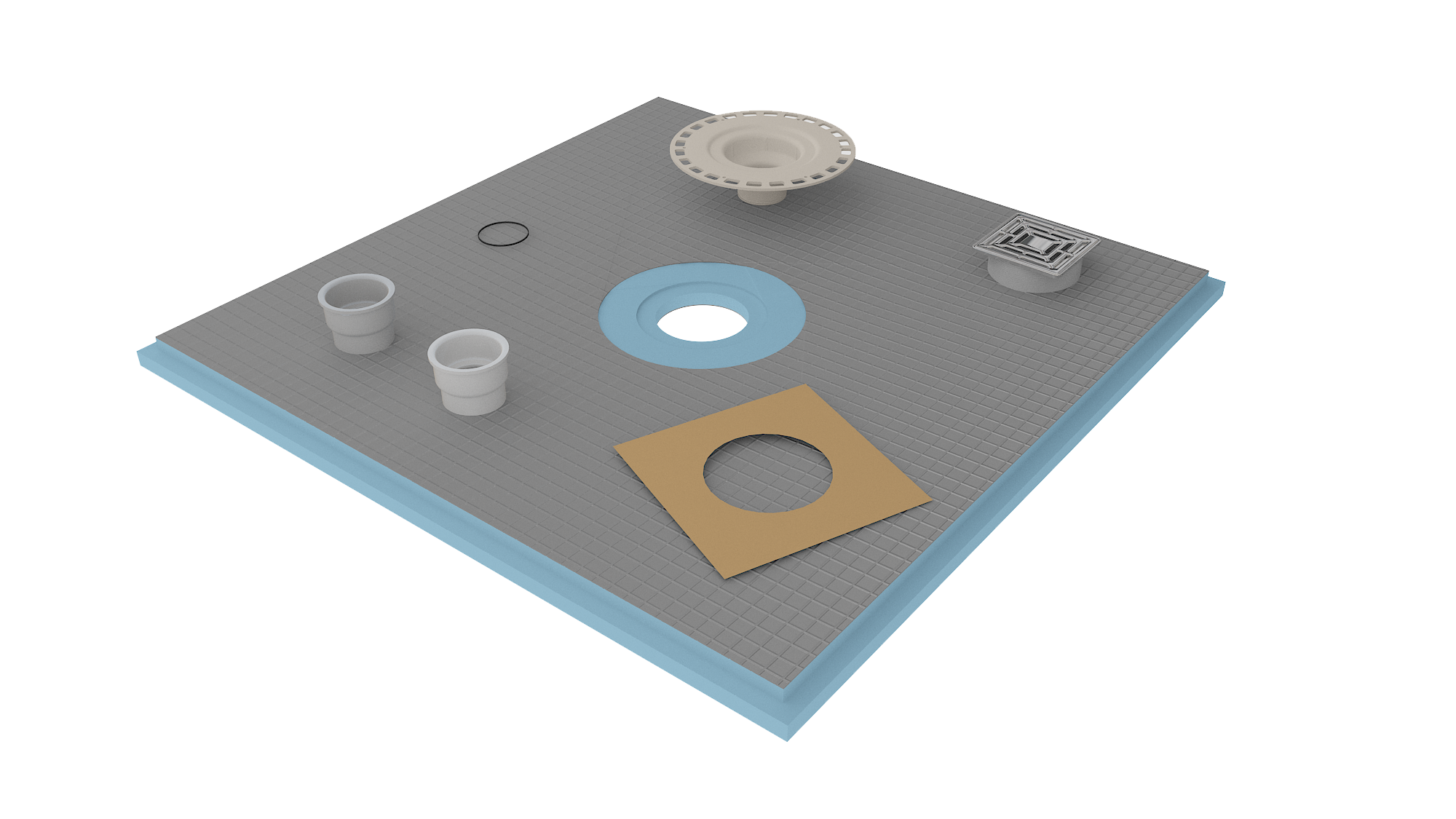

JA99 Shower Pan


This Video details the various accessories of JA99 Shower Pan, as well as the installatn method floor.

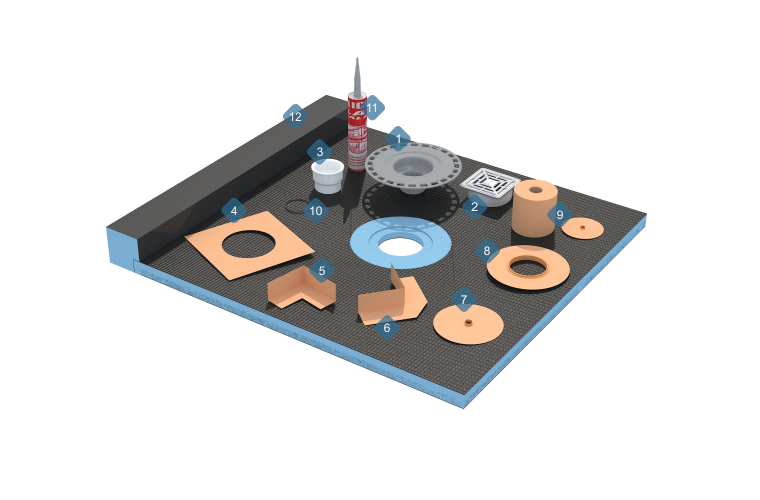

System components


  • 1.Drain Body
  • 2.Stainless Steel Grate
  • 3.Floor Drain Connector(PVC and ABS)
  • 4.Drain Body Waterproof Tape
  • 5.Waterproof Inner Corner
  • 6.Waterproof External Corner
  • 7.Pipe Seal
  • 8.Mixing Valve Seal
  • 9.Waterproof Tape
  • 10.O-ring
  • 11.waterproof Sealant
  • 12.Shower Curb


Product Details

JIT panels are available in a variety of sizes and can be customized.

Shower Drain Size inch Model
Centre Drain 36"x36"x1 1/2" SP99CE3636
36"x48"x1 1/2" SP99CE3648
36"x60"x1 1/2" SP99CE3660
36"x72"x1 1/2" SP99CE3672
48"x48"x1 1/2" SP99CE4848
48"x60"x1 1/2" SP99CE4860
48"x72"x1 1/2" SP99CE4872
48"x84"x2" SP99CE4884
60"x60"x1 1/2" SP99CE6060
60"x72"x1 1/2" SP99CE6072
60"x84"x2" SP99CE6084
72"x72"x1 1/2" SP99CE7272
Offset Drain 36"x60"x1 1/2" SP99OF3660
36"x72"x2" SP99OF3672



• More economical waterproof system
• 100% waterproof shower pan system
• Acoustically better than screed
• Easy access, floor level
• Pre-laid to falls
• Available with offset or central drain
• Lightweight
• Can be finished with tiles or sheet systems
• Hygenic as no moisture builds up under the tiles
• Can be easily cut to fit on site
• Preformed ( no skilled laying of falls )
• Can be fixed to timber or concrete floors
